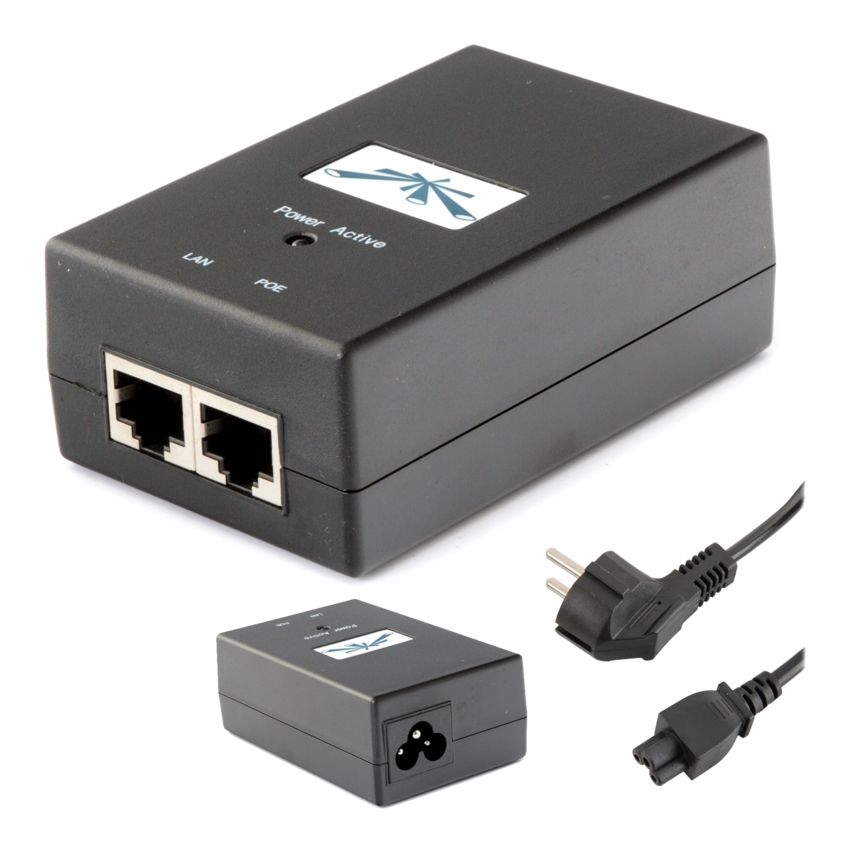

UBIQUITI PoE adapter POE-48 με power cable

UBIQUITI PoE adapter POE-48 με power cable, 48VDC, 0.5A, 24W

Οι αντάπτορες PoE της Ubiquiti παρέχουν ποικιλία λειτουργιών που βοηθούν στην αποτελεσματική προστασία των PoE συσκευών σας.

-surge and clamping protection
-maximum surge discharge
-πeak pulse current
-AC καλώδιο με γείωση

Τεχνικά χαρακτηριστικά:
Output Voltage: 48VDC @ 0.5A
Input Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max
Switching Frequency: kHz
Line Regulation: ? 3%
Load Regulation: ? 5%
Operating Temperature: 0 to 40° C
Storage Temperature: -30 to 70°C
Operating Humidity: 35 to 95% Noncondensing
Size (LxWxH): 88 x 57 x 33 mm
Weight: 135.5 g
AC Ceonnector : IEC-320 C6
Data IN/POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1500A (8/20 _s) Power
Peak Pulse Current: 36A (10/1000uS) Data
Shunt Capacitance: <5pf data
Response Time: <1nS
