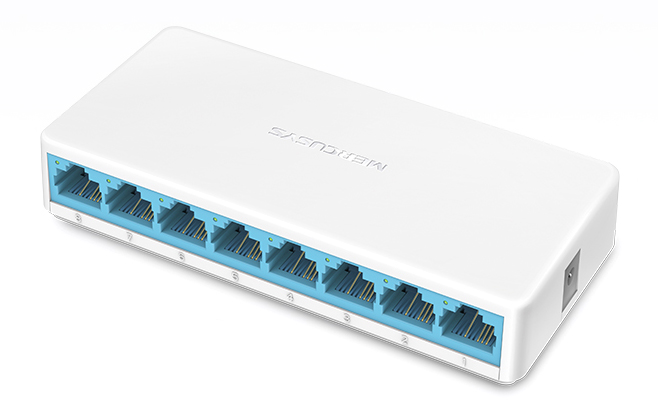

MERCUSYS Desktop Switch MS108

MERCUSYS Desktop Switch MS108, 8x 10/100 Mbps, Ver. 2

-Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported

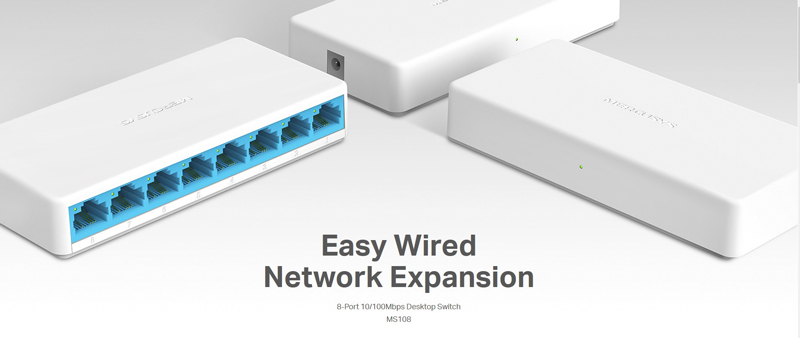

-Easily wired network expansion
-Compact design for flexible arrangement

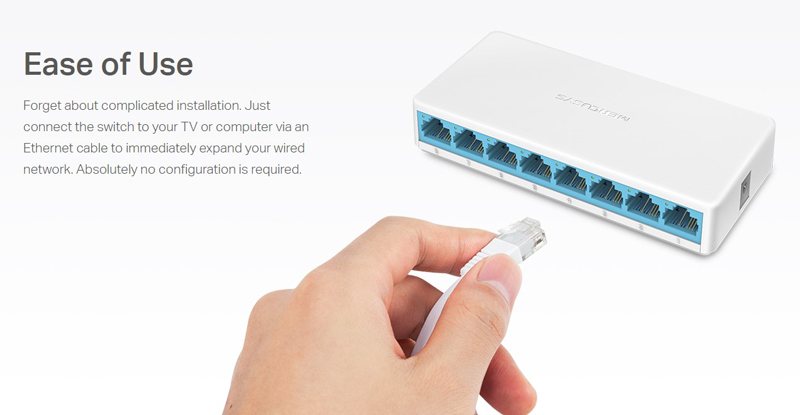

-Plug and play setup, no configuration required

Τεχνικά Χαρακτηριστικά:
Interfaces: 8x 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power Supply: 5V/0.4A
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Dimensions (W X D X H): 127 x 60.3 x 22 mm
Data Rates: 10/100Mbps at half duplex, 20/200Mbps at full duplex
Buffer Capacity: 768Kb
Jumbo Frame: 2KB
Switching Capacity: 1.6Gbps
LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Transfer Method: Store and forward

Περιεχόμενα συσκευασίας
Desktop Switch MS108
Τροφοδοτικό
Εγχειρίδιο χρήσης
