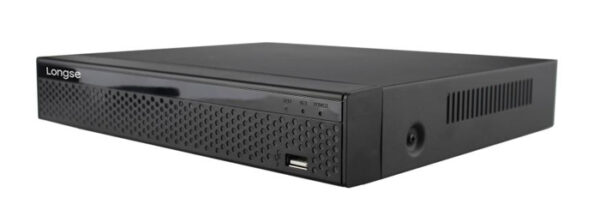

LONGSE XVR υβριδικό καταγραφικό XVRT3008D
H.265/H.264, 8 κανάλια
88,00 €
Διαθέσιμο σε 1 έως 3 ημέρες
LONGSE XVR υβριδικό καταγραφικό XVRT3008D, H.265/H.264, 8 κανάλια
Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog), με υποστήριξη έως και 8 καναλιών HD ή 16 καναλιών IP. Επιπλέον υποστηρίζει ανάλυση καταγραφής HD 5MP και IP 5MP αλλά και HDD έως 8ΤΒ.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια.
-AHD/CVI/TVI/IP/Analog camera input
-ανάλυση καταγραφής HD 5MP και IP 5MP
-HD, VGA & CVBS Video οutput
-υποστηρίζει έως και 8 κανάλια HD ή 16 κανάλια IP camera input
-2.5"/3.5" SATA HDD έως 8ΤΒ
-απομακρυσμένη προβολή μέσω smartphone (iPhone, iPad, Android Phone)
-Web & VMS Platforms
-H.265+/H.265/H.264+/H.264 video compression
-recording mode: manual, timer, motion detection, motion measurement & alarm
-ελληνικό μενού
Συμβατές εφαρμογές:
Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.lsbtvapp&pli=1
IOS
https://apps.apple.com/us/app/bitvision/id1419463554
PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10
WEB Browser
www.bitvision.app
Τεχνικά χαρακτηριστικά
System
Main Processor: MC6630
Operating System: Embedded LINUX
Video
Input: Normal Mode: Analog: 8x(TVI/AHD: 5M/12fps, AHD/TVI/CVI: 4M/15fps, AHD/TVI: 3M/18fps, AHD/TVI/CVI: 1080P/720P, Analog: 960H), Analog+Network: 2xAnalog(5MP)+7x network(MAX 5MP), 4xAnalog(5MP)+5x network(MAX 5MP), 6x Analog(5MP)+3x network(MAX 5MP), Network: 16x5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth 48M)
Input: 8CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD, 1 VGA, CVBS
Audio
Input: 2 Channel RCA, support AOC
Two-way Audio: Όχι
Output: 1 Channel, RCA
Alarm
Sensor Input: 4 CH
Output: 1 CH
Motion Detection: 8 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
PTZ
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
Display
VGA: Resolution: 1920x1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HD Output: Resolution: 1920x1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression: H.265+/H.265/H.264+/H.264
Audio Compression: G.711U/G.711A
Resolution: 5MP_Lite(1296×1952), 4MP_Lite(1280×1440), 3MP_Lite(1024×1536), 1080N(960×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
Video Quality: Lowest/Low/Ordinary/Good/Better/Best
Record Rate: Analog: PAL: 5MP_Lite(1296×1952 8*6fps), 4MP_Lite(1280×1440 8*8fps), 3MP_Lite(1024×1536 8*10fps), 1080N(960×1080 8*15fps), 720P(1280×720 8*15fps), 960H(960×576 8*25fps), NTSC:5MP_Lite(1296×1944 8*6fps), 4MP_Lite(1280×1440 8*8fps),3MP_Lite(1024×1536 8*10fps), 1080N(960×1080 8*15fps), 720P(1280×720 8*15fps), 960H(960×576 8*30fps), Pure IP(H.265): PAL: 5MP/8x25fps, 4MP/12x25fps, 3MP/12x25fps, 1080P/12x25fps, 960P/12x25fps, 720P/12x25fps, D1/12x25fps, NTSC: 5MP/8x30fps, 4MP/12x30fps, 3MP/12x30fps, 1080P/12x30fps, 960P/12x30fps, 720P/12x30fps, D1/12x30fps, Pure IP(H.265): PAL: 5MP/8x25fps, 4MP/9x25fps, 3MP/9x25fps, 1080P/9x25fps, 960P/9x25fps, 720P/9x25fps, D1/9x25fps NTSC: 5MP/8x30fps, 4MP/9x30fps, 3MP/9x30fps, 1080P/9x30fps, 960P/9x30fps, 720P/9x30fps, D1/9x30fps
Record Mode: ManualTimerMotion DetectionAlarm InputMotion and Alarm
Playback & Backup
Decode Capability: 2CH 1080P/30fps
Sync Playback: Pure Analog: 4CH 960H/25fps, 2CH 720P/20fps, 2CH 1080N/18fps, 1CH 5M_LITE/8fps, 1CH 4M_LITE/15fps, 1CH 3M_LITE/18fps, Mixture mode: 4CH 720P/25fps, 2CH 1080P/25fps, 1CH 5M_LITE/8fps, 1CH 4M_LITE/15fps, 1CH 3M_LITE/18fps, Pure Network: 4CHx720P/25fps, 2CH 1080P/25fps, 1CH 5MP/25fps
Remote Playback: 4 Channel / 1 Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Motion and Alarm
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback: 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP
Network
Interface1: RJ45 10M/100M Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1-12fps)
Smart Phone: iPhone, ipad, Android, Android pad
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
UTC Control: Ναι
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V/2A 6W (Without Hard Disk)
Working Environment: -10~55°C/10~90%
Διαστάσεις (WxDxH): 260 x 215 x 43(mm)
Περιεχόμενα συσκευασίας
XVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Βίδες
Εγχειρίδιο χρήσης
